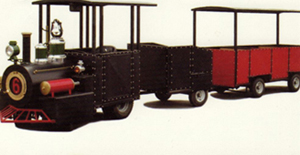

| Replica Locomotive
Trackless Trains
Andy Renner
1431 W. Cienega Ave.
San Dimas, CA 91773
909/731-9244
www.choose-a-choo-choo.com
|
|
|
| Installation |
|
Multiple
locations
Parking lot tram trains |
| Specifications |
|
| Track:
|
N/A |
| Height |
|
| Width |
|
| Wheels: |
22” dia. |
| Cars:
|
6 or
more |
| Loaded weight: |
up to 18,000 lbs. |
| Top
speed on level: |
6 mph |
| Max. grade: |
30% |
| Max.
speed @ 2%: |
5.4
mph |
| Acceleration: |
0-6 mph in 5 sec. |
| Run
time/cycle: |
8 hrs. |
| Recharge time: |
< 8 hrs.
|
| System
Hardware |
| Pack
Voltage: |
72
vdc |
| Battery no./type: |
9 ea. USB #8V-GCHC. 183
A-hrs |
| Battery
weight: |
570
lbs. |
| Motor: |
2 ea. ADC #A00-4009 36-72V,
6 hp c/d |
| Controller: |
Alltrax
#AXE7245P 48-72V, 450A |
| Charger: |
Zivan #NG-5 |
| Throttle: |
PRO-4
inline joystick |
| Braking: |
Hydraulic & electronic
plugging |
| Safeties: |
Fuses
Circuit breaker
Main contactor
Charger interlock
Reverse speed limiting |
